Fully automatic operation with smooth and quiet movement
Silent motor for comfortable user experience
304 stainless steel structure for durability and easy maintenance
Clear single-person passage control to reduce unauthorized access
Compatible with most third-party access control systems
Designed for continuous operation in high-traffic environments
| Power Supply | AC 220V/110V, 50/60Hz |
| Operating Temperature | -28 °C- 80“C |
| Operating Humidity | ≤90% |
| Working Environment | Indoor/Outdoor both.IP54 Standard |
| Flow Rate | 25-48 passage/minute |
| Material | SUS304 (SUS 316 for option) |
| Mechanism | full automatic brushless motor |
| Communication Interface | Dry contact, RS232, RS485 can be customize |
| Emergency Alarm function | Yes |

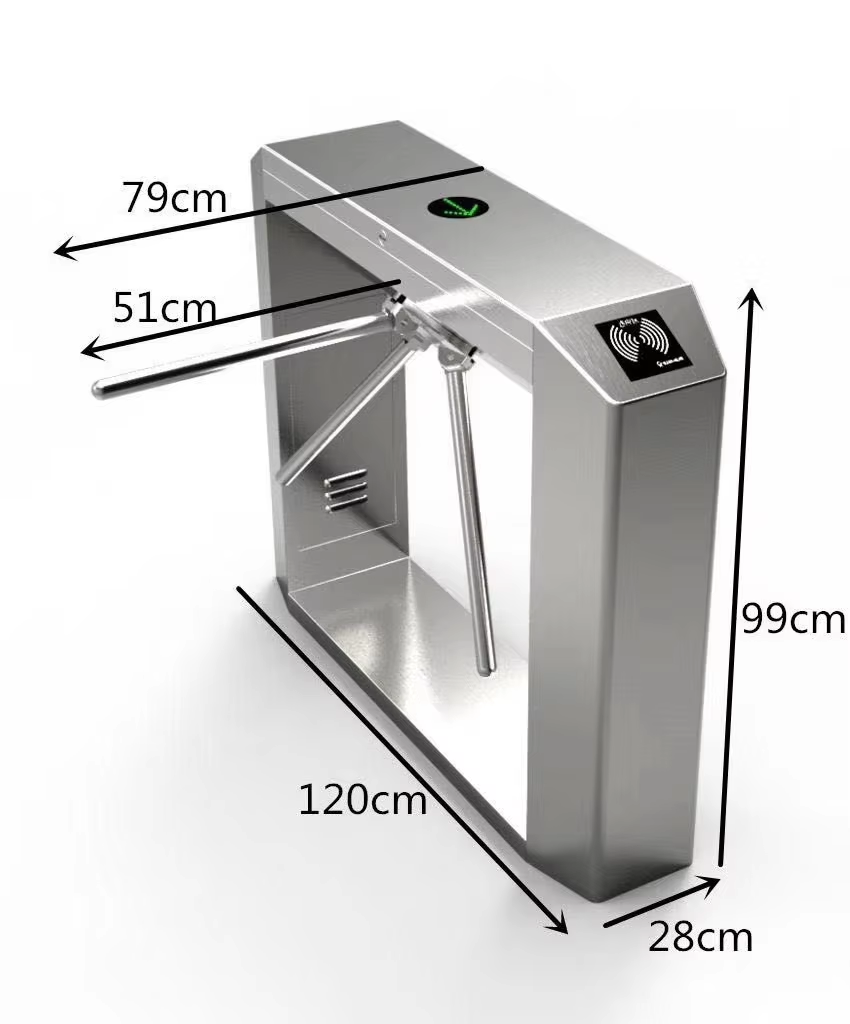

| Dimension | 1200*280*990mm (L*W*H) |
| Net Weight | 45kg |
| MCBF | 5 million cycles |
| Warranty | 2 years |
| Package Details | Packed into wooden case, 1305*445*1180mm, 65kg |
