Model:

DS-GZ-202

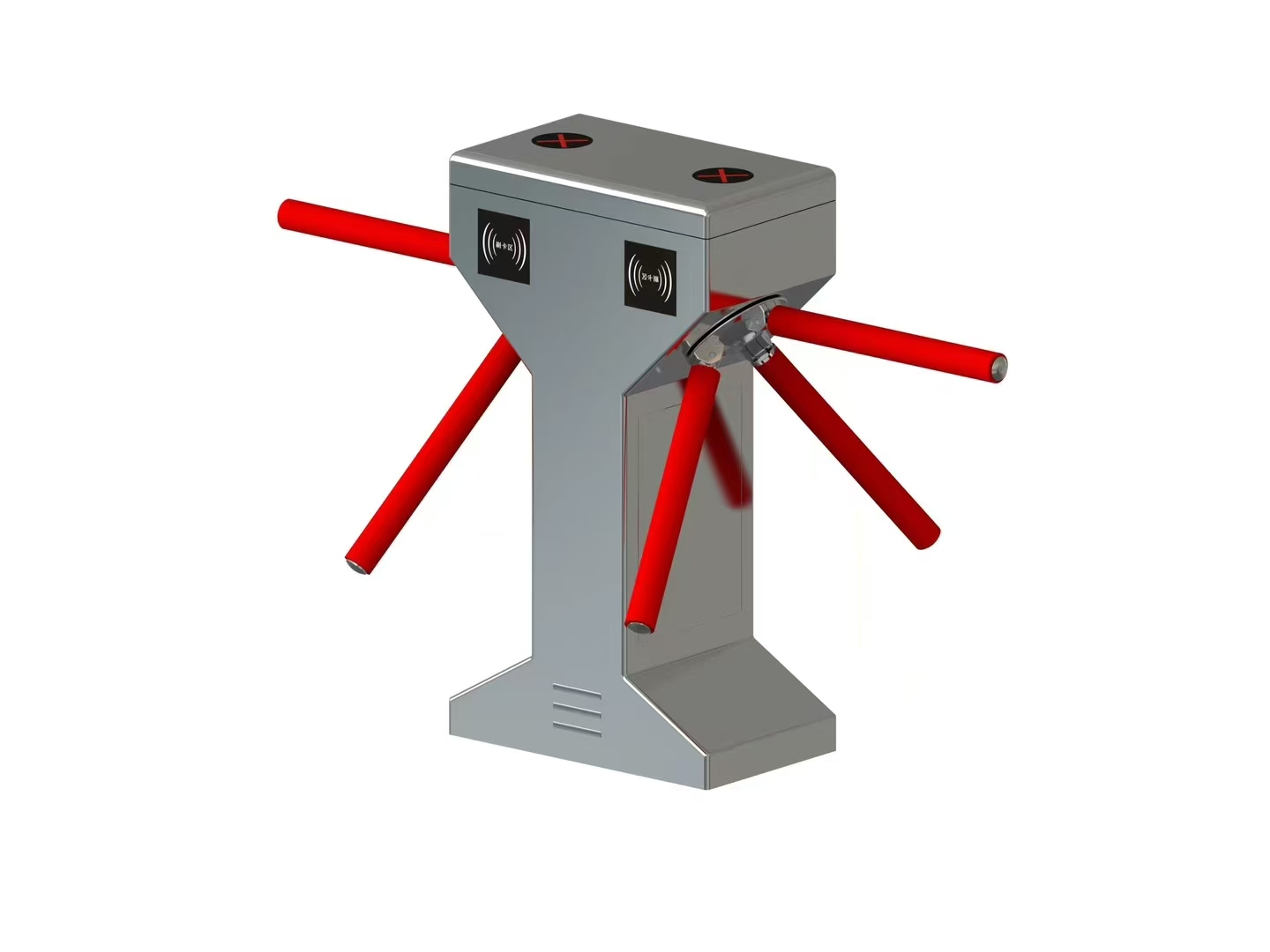

DS-GZ-202 – Tripod Turnstile

Chassis Size:

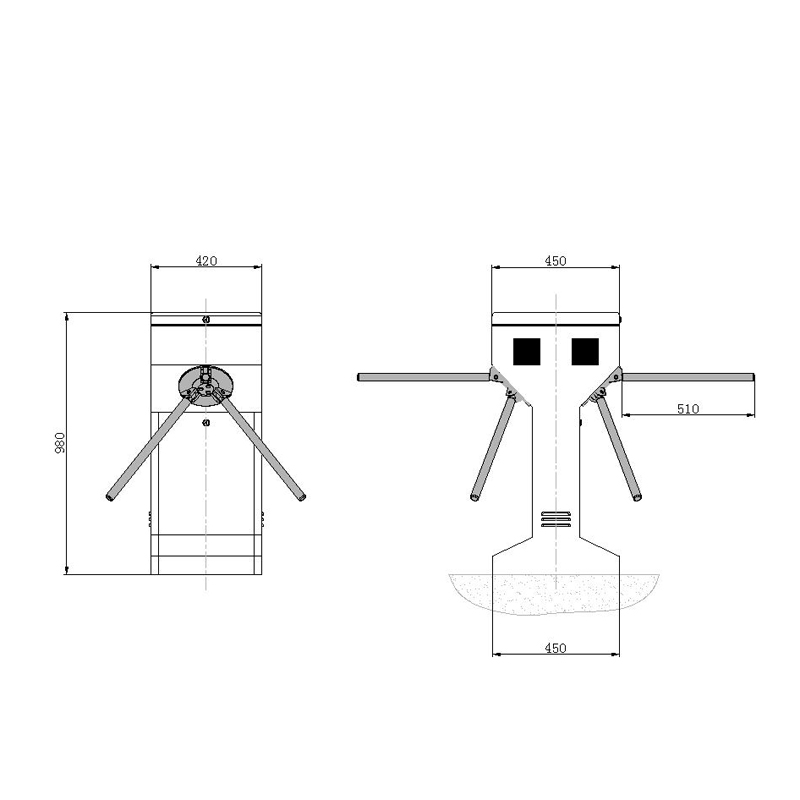

420*450*980 mm(L*W*H)

introduce:

This dual-mechanism tripod turnstile is designed for stable and controlled pedestrian access in medium to high traffic environments. Two independent internal mechanisms provide better balance and smooth operation during continuous use. The stainless steel housing ensures durability and a clean appearance. It supports integration with RFID, QR code, and biometric access control systems, making it suitable for offices, gyms, campuses, and commercial facilities.

Power Supply AC 220V/110V, 50/60Hz
Operating Temperature -28 °C- 80“C
Operating Humidity ≤90%
Working Environment Indoor/Outdoor both.IP54 Standard
Flow Rate 25-48 passage/minute
Material SUS304 (SUS 316 for option)
Mechanism Semi automatic electromagnetic mechanism (full automatic brushless motor for option)
Communication Interface Dry contact, RS232, RS485 can be customize
Emergency Alarm function Yes
Dimension 420*450*980 mm(L*W*H)
Net Weight 33kgs
MCBF 5 million cycles
Warranty 2 years
Package Details Packed into wooden case, 1080*490*570 mm, 50kg
