Model:

DS-BZ-302

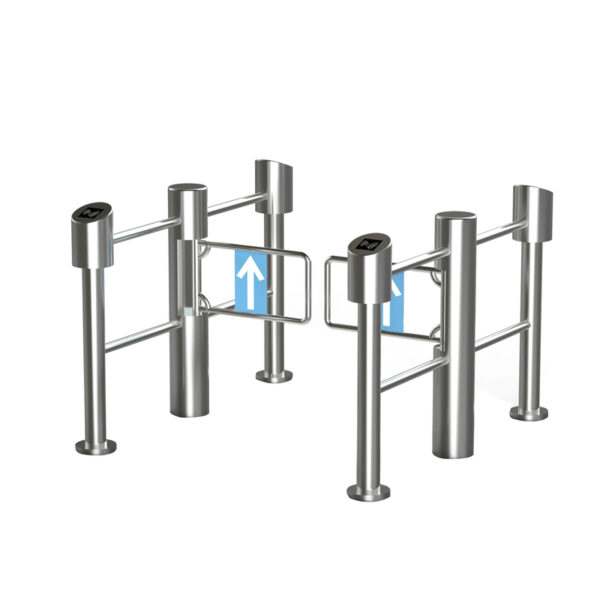

DS-BZ-302  – Swing Turnstile

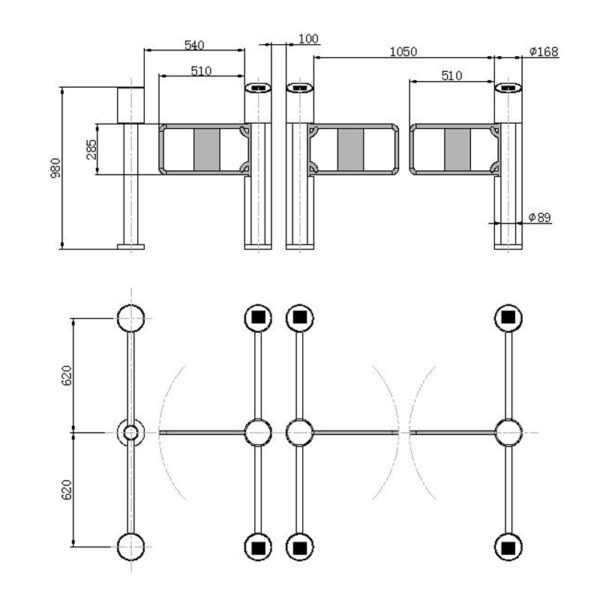

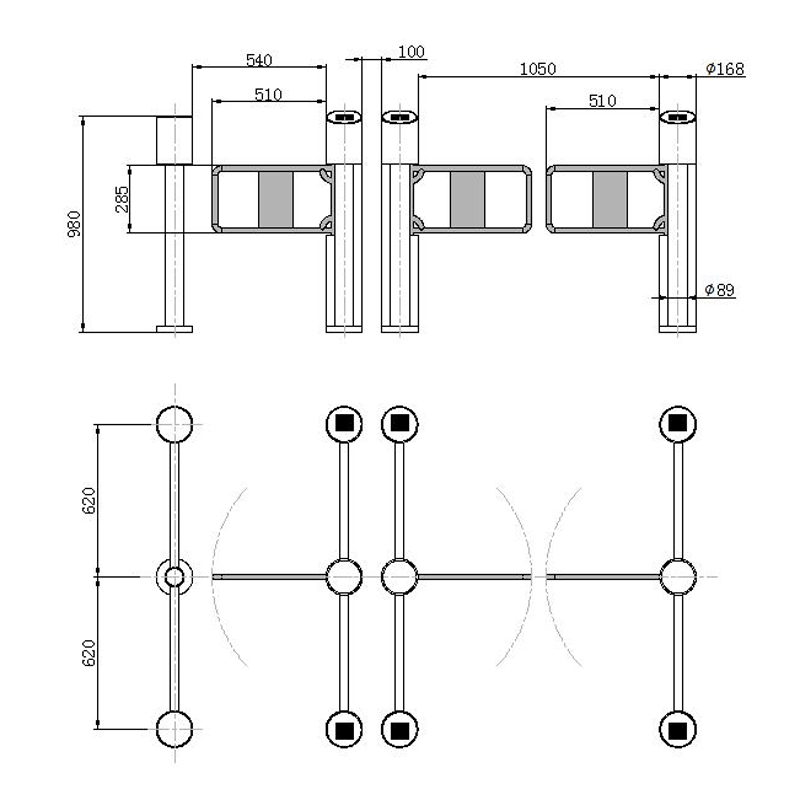

Chassis Size:

980*168mm (Diameter)

introduce:

This half height turnstile is designed for one-way pedestrian flow management in public and commercial environments.Its waist-high mechanical structure provides clear physical guidance while allowing smooth and continuous passage.The open swing-bar design helps organize movement and reduce reverse flow without creating a sense of restriction. Stainless steel construction ensures stable performance under daily high-frequency use and maintains a clean, professional appearance.This model is suitable for locations where orderly pedestrian movement and directional control are required.

Power Supply AC 220V/110V, 50/60Hz
Operating Temperature -28 °C- 80“C
Operating Humidity ≤90%
Working Environment Indoor/Outdoor both.IP54 Standard
Flow Rate 25-48 passage/minute
Material SUS304 (SUS 316 for option)
Communication Interface Dry contact, RS232, RS485 can be customize
Emergency Alarm function Yes
Dimension 980*168mm (Diameter)
MCBF 5 million cycles
Warranty 2 years
