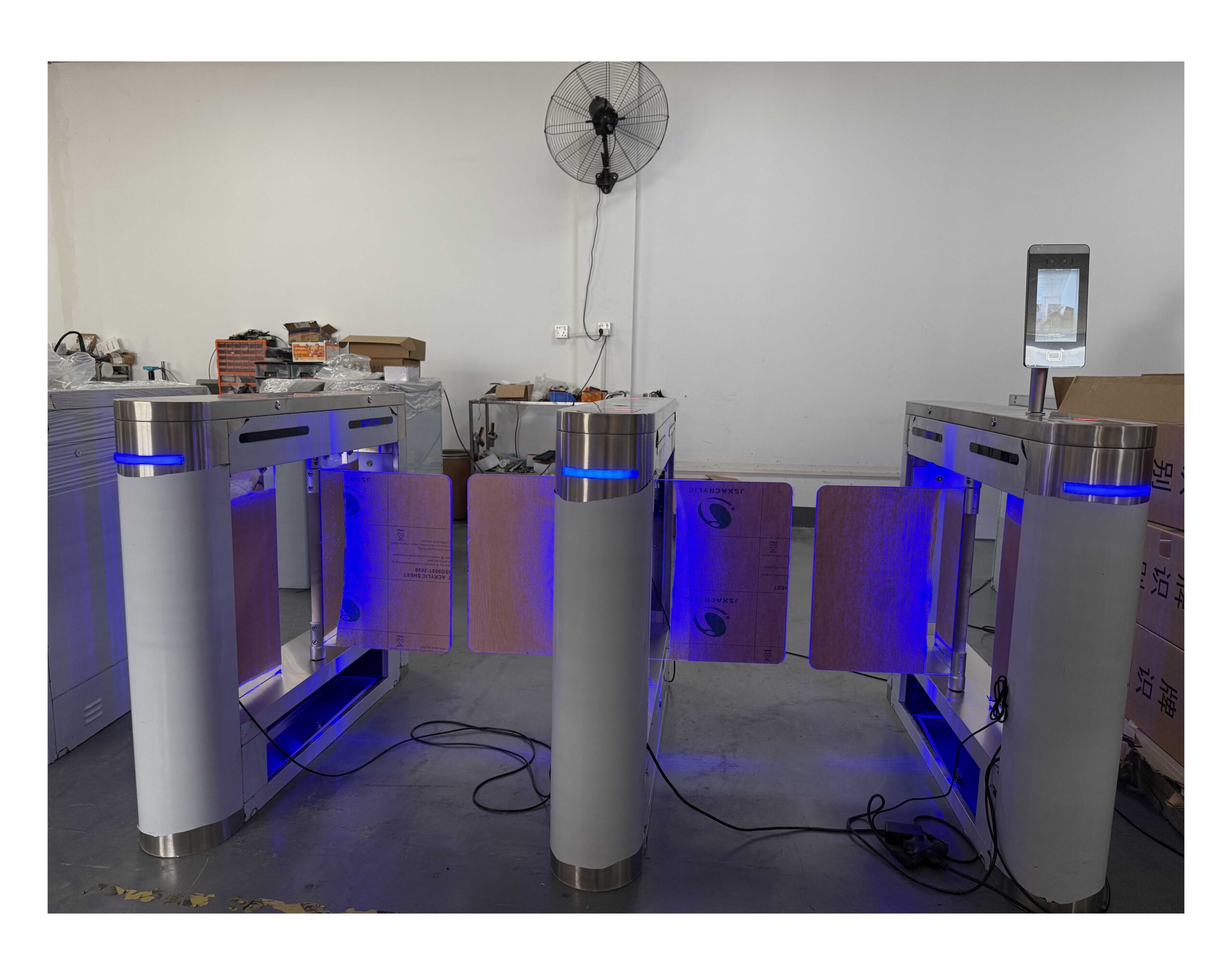

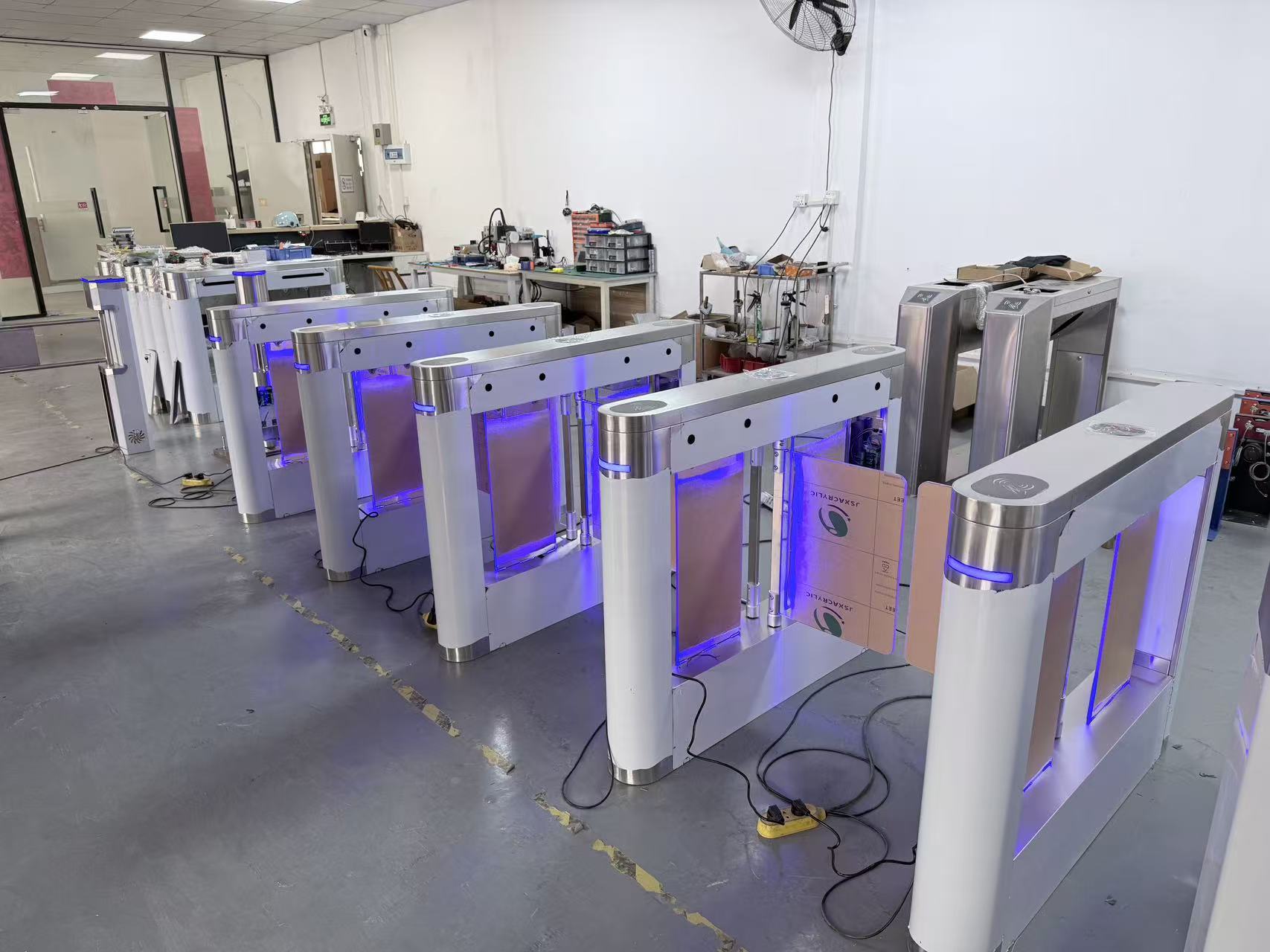

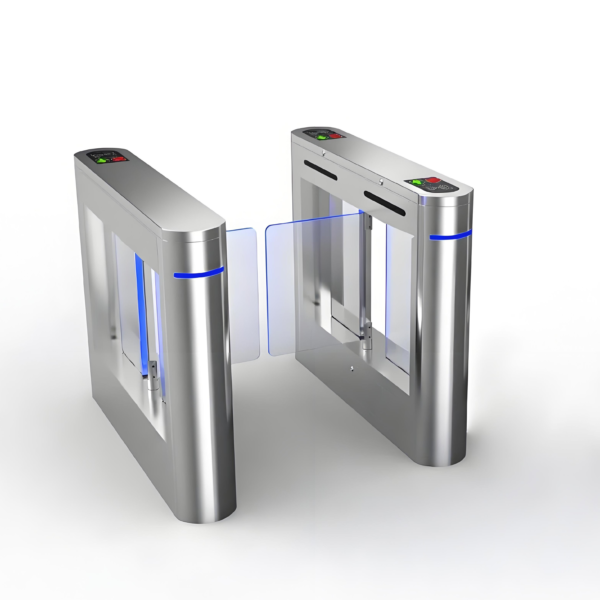

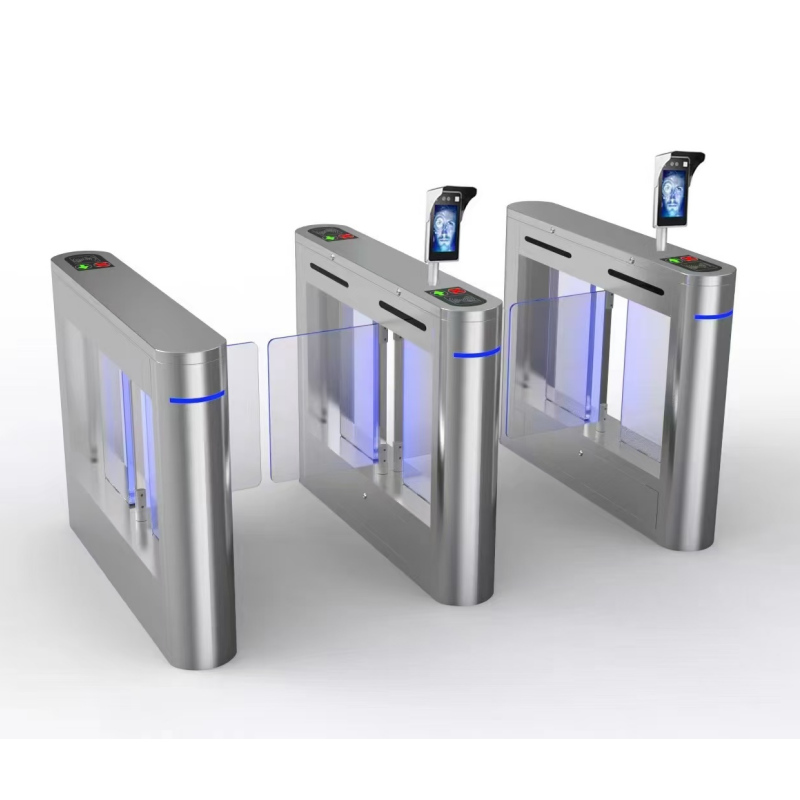

Elegant swing gate design with transparent panels
Slim stainless steel housing with smooth, rounded corners
Clear passage indication with integrated LED lighting
Supports QR code, card, and biometric access systems
Smooth and stable operation for daily high-frequency use
Suitable for controlled indoor pedestrian flow
| Power Supply | AC 220V/110V, 50/60Hz |
| Operating Temperature | -28 °C- 80“C |
| Operating Humidity | ≤90% |
| Working Environment | Indoor/Outdoor both.IP54 Standard |
| Flow Rate | 25-48 passage/minute |
| Material | SUS304 (SUS 316 for option) |
| Communication Interface | Dry contact, RS232, RS485 can be customize |
| Emergency Alarm function | Yes |
| Dimension | 1200*200*980 mm （L*W*H） |
| MCBF | 5 million cycles |
| Warranty | 2 years |
| Package Details | Packed into wooden case, 1270*500*1160 mm, 88.5kg |
