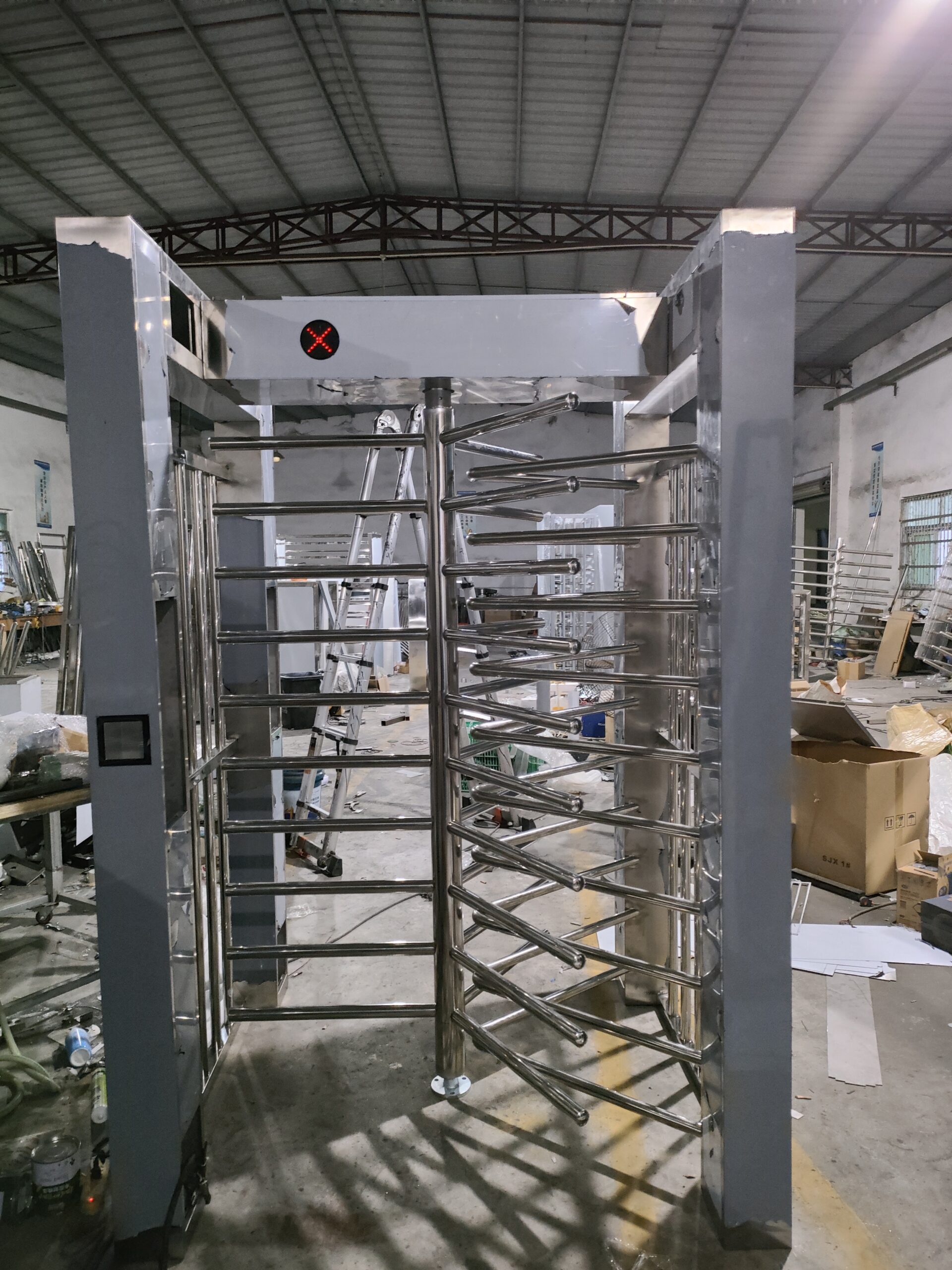

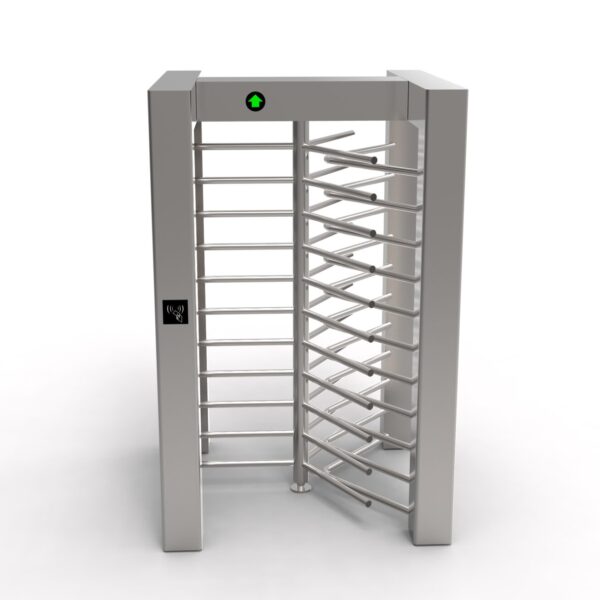

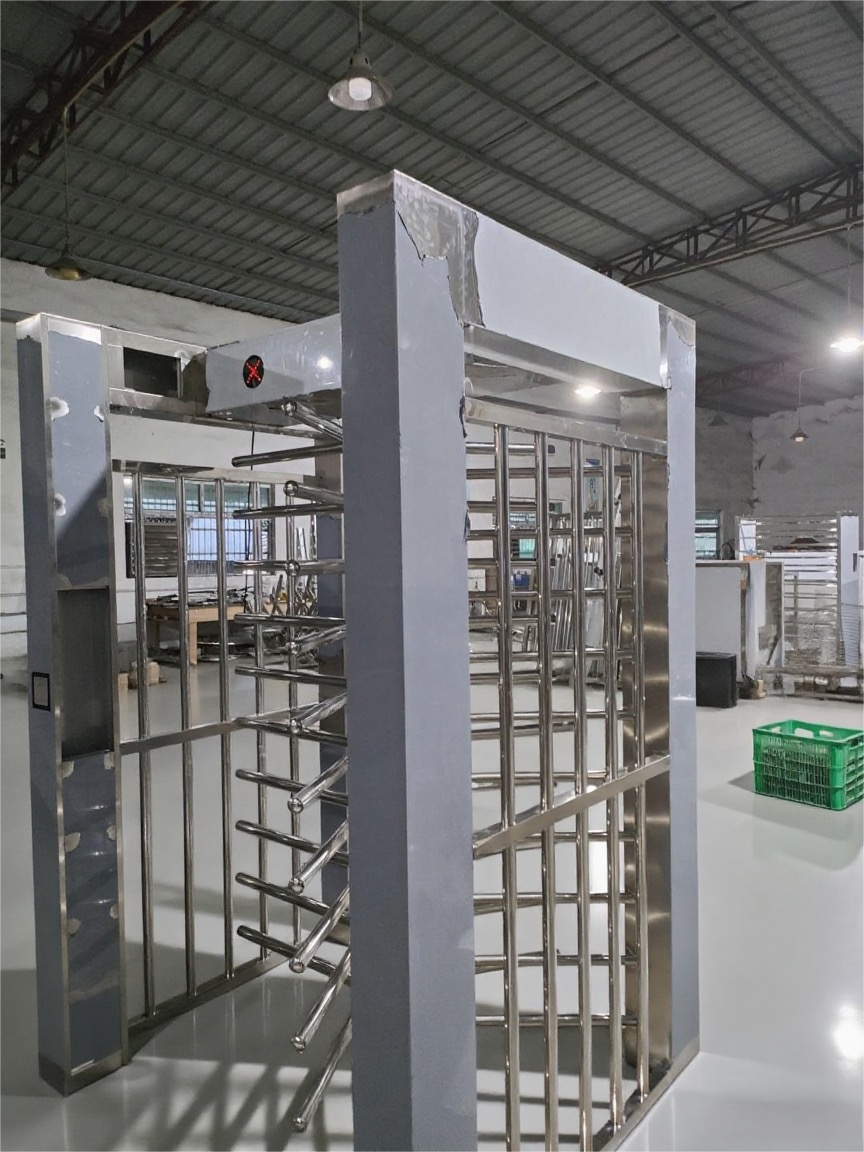

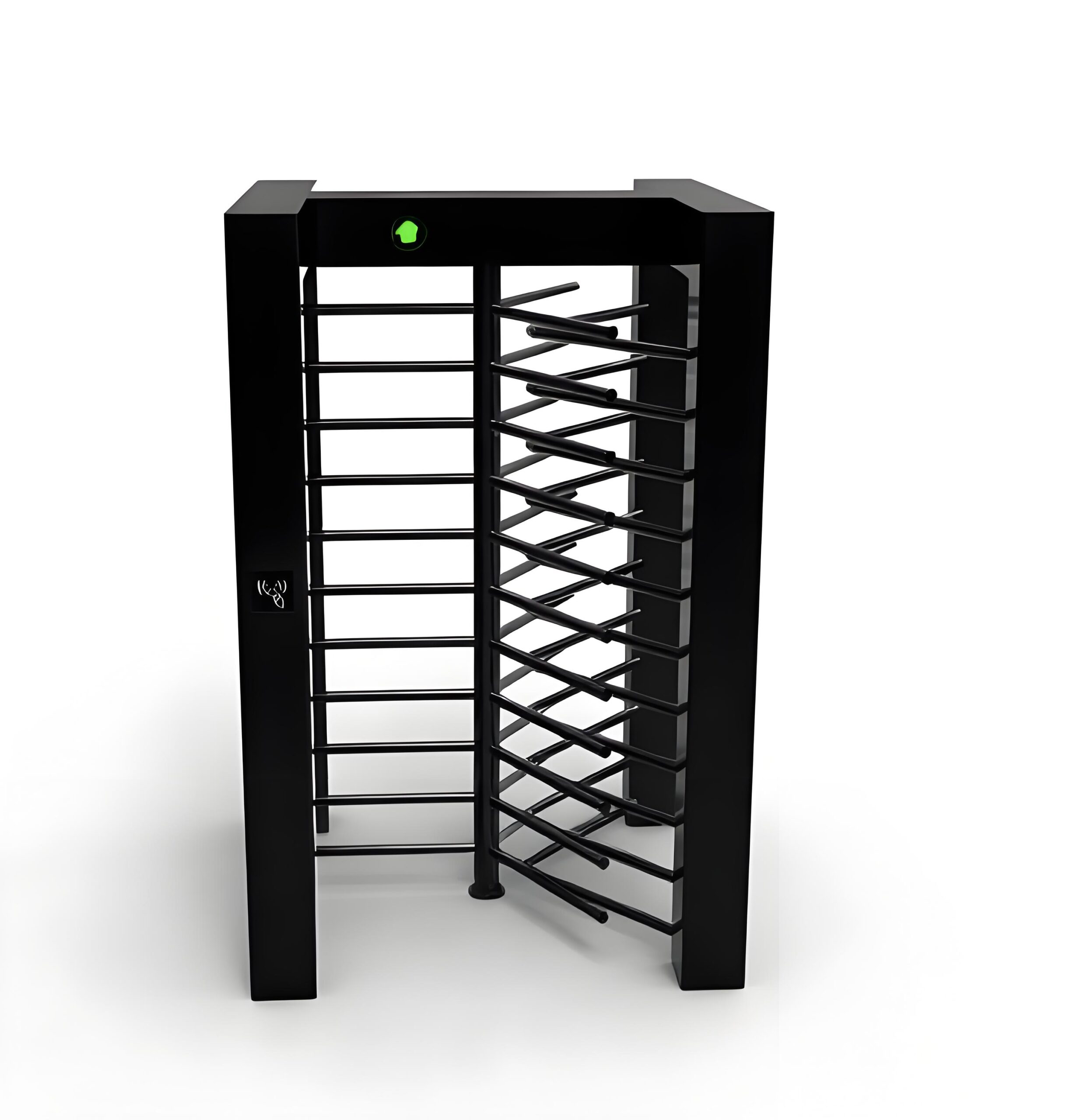

This single channel full height turnstile provides secure, controlled pedestrian access with a compact vertical frame design.
The full-height rotor structure effectively prevents tailgating and unauthorized entry.
It supports integration with access control systems such as RFID, QR code, or biometric readers, making it suitable for factories, construction sites, stadiums, and restricted areas.
| Power Supply | AC 220V/110V, 50/60Hz |
| Operating Temperature | -28 °C- 80“C |
| Operating Humidity | ≤90% |
| Working Environment | Indoor/Outdoor both.IP54 Standard |
| Flow Rate | 35-45 passage/minute |
| Material | SUS304 (SUS 316 for option) |
| Mechanism | Semi automatic electromagnetic mechanism with hydraulic buffer function (full automatic brushless motor for option) |
| Communication Interface | Dry contact, RS232, RS485 can be customize |
| Emergency Alarm function | Yes |

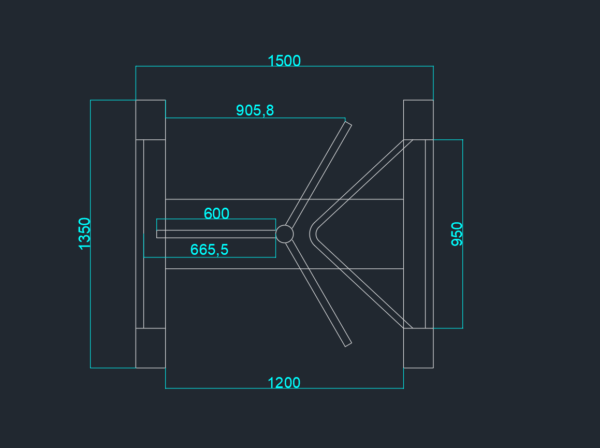

| Dimension | 1500*1350*2300mm (L*W*H) |
| MCBF | 5 million cycles |
| Warranty | 2 years |
| Package Details | Packed into wooden case, 1370*1410*2380mm, 225kg |
