Model:

DS-YZ-119

DS-YZ-119 – Flap Barrier Turnstile

Chassis Size:

1200*200*980mm(L*W*H)

introduce:

• Ultra-Fast & Quiet: Brushless motor for smooth, rapid opening (0.2s) and silent operation.
• Advanced Anti-Pinch: 6+ pairs of infrared sensors ensure the gate never closes on a person.
• Universal Integration: Plug-and-play with RFID, Fingerprint, Face ID, and QR code scanners.
• Industrial Durability: Heavy-duty 304 Stainless Steel body—rust-proof and built for 24/7 use.
• Visual Alerts: Intuitive LED light bars (Green/Red) for clear traffic guidance and emergency status.
• Auto-Reset: Automatically re-locks if the passage isn’t completed within a set time to prevent tailgating.
Power Supply AC 220V/110V, 50/60Hz
Operating Temperature -28 °C- 80“C
Operating Humidity ≤90%
Working Environment Indoor/Outdoor both.IP54 Standard
Flow Rate 25-48 passage/minute
Material SUS304 (SUS 316 for option)
Communication Interface Dry contact, RS232, RS485 can be customize
Emergency Alarm function Yes

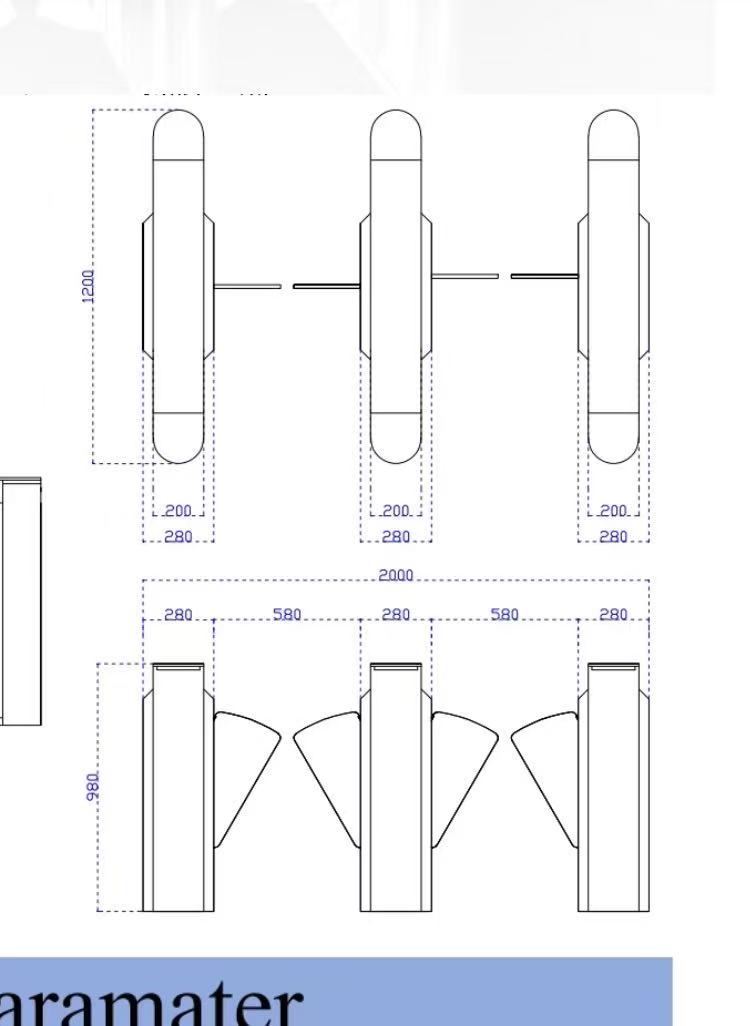

Dimension 1200*200*980 mm (L*W*H)
MCBF 5 million cycles
Warranty 2 years
Package Details Packed into wooden case, 1270*500*1160 mm, 88.5kg
